OU500
Multi-Biometric Capture Module
Capture Iris Images in Virtually Any Environment
Experience the new OU500 – a powerful, multi-biometric capture module. This on-the-go identity verification camera is designed specifically for tablets and smartphones. Engineered for seamless integration, this compact and lightweight system brings enterprise-grade security to mobile platforms without compromising usability. Key features include:
- Advanced face and iris recognition module
- Compact and lightweight design
- Multi-sensor USB camera system
- Simultaneous auto focus capture of iris and face imagesin less than 1 second
- Dual iris capture with NIR illumination
- Iris ID matching algorithm (optional)
- Seamless integration using Device Control SDK
- Windows and Android OS Support
- Operator User Guidance
- Multi-color LED Status Indicator
- Advanced Power Management with USB-C Active Power Standards
Use Case

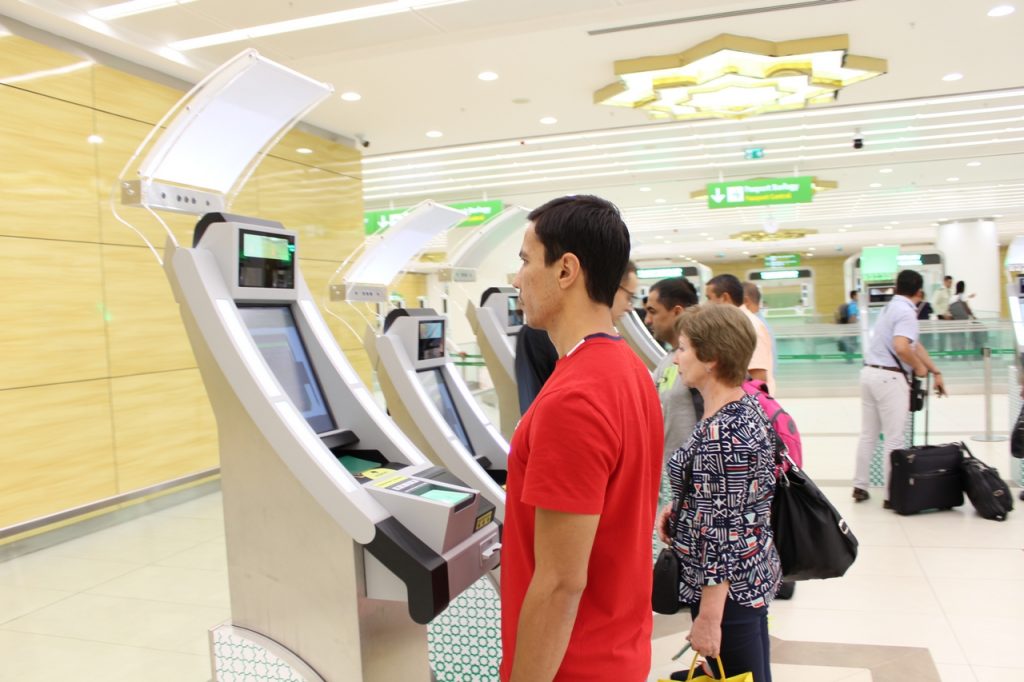

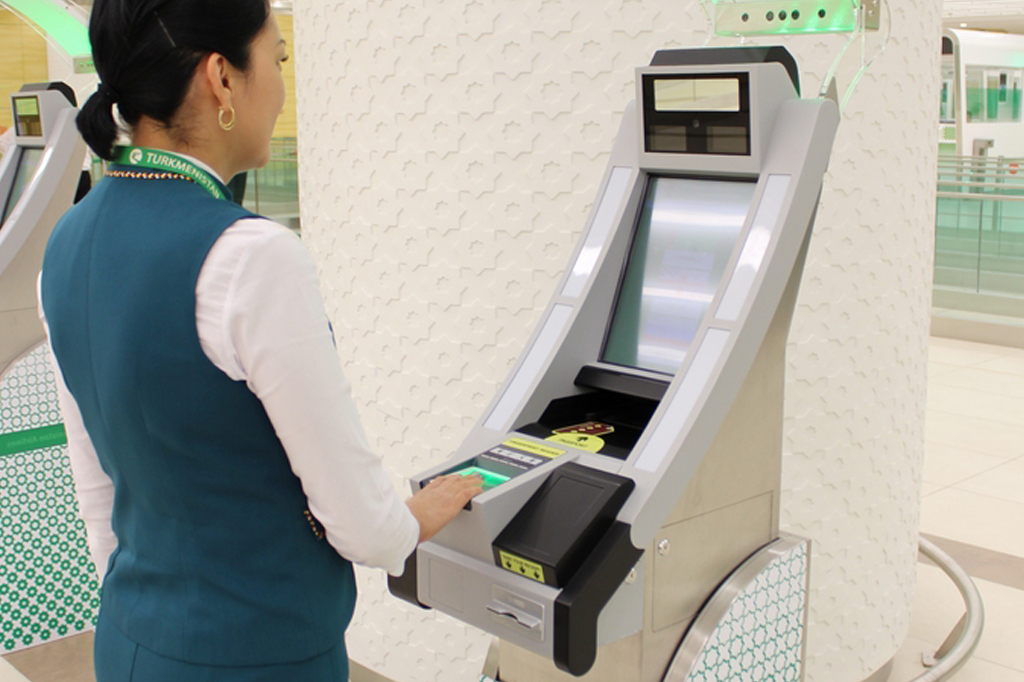

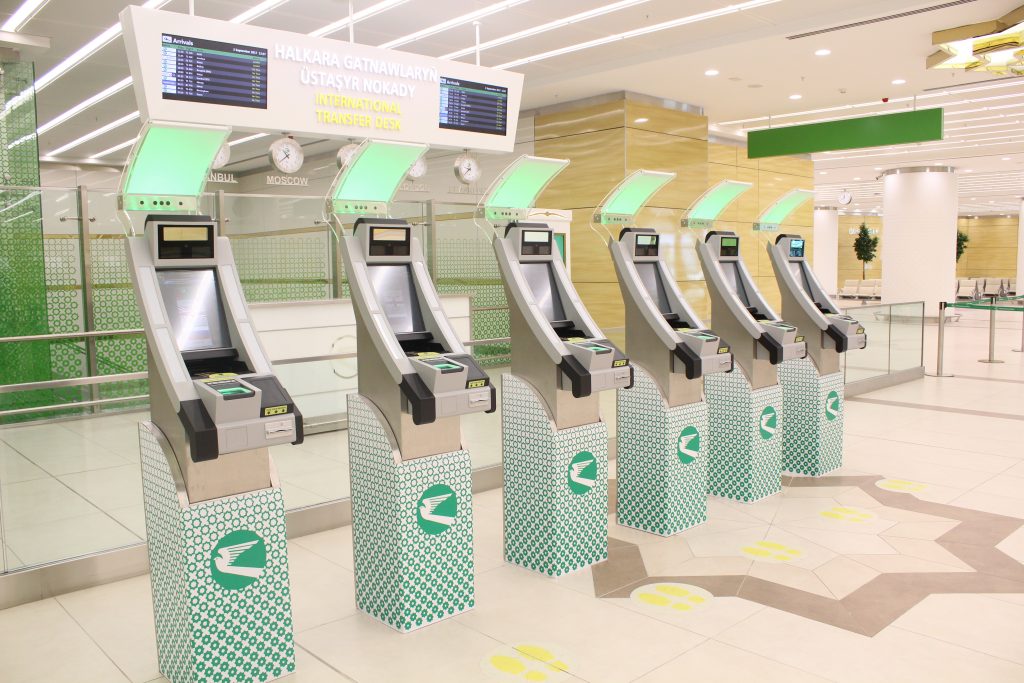

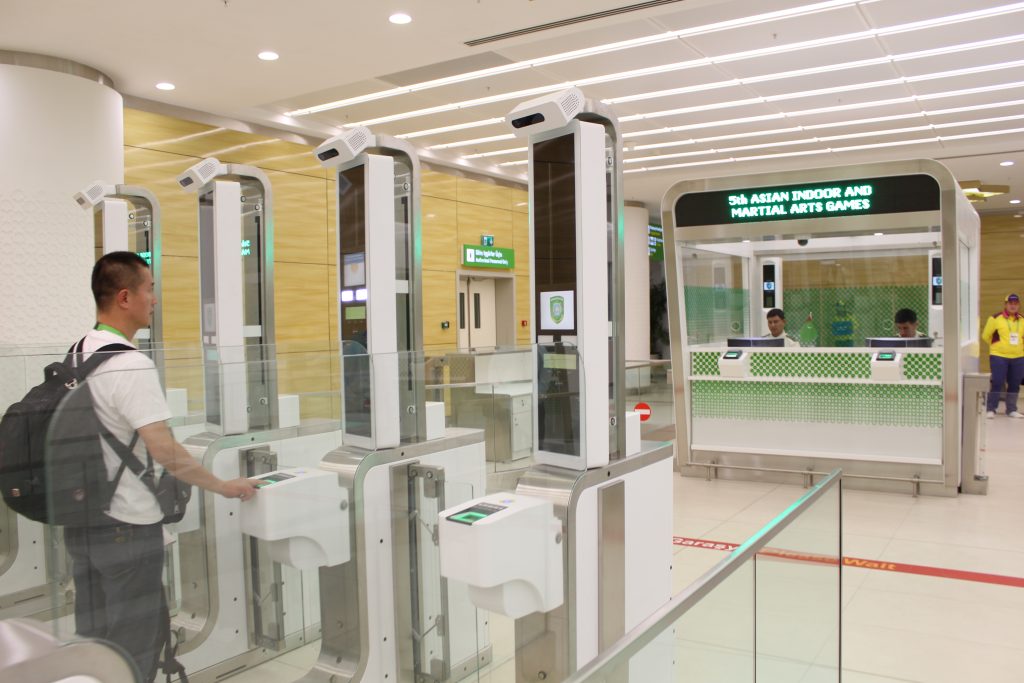

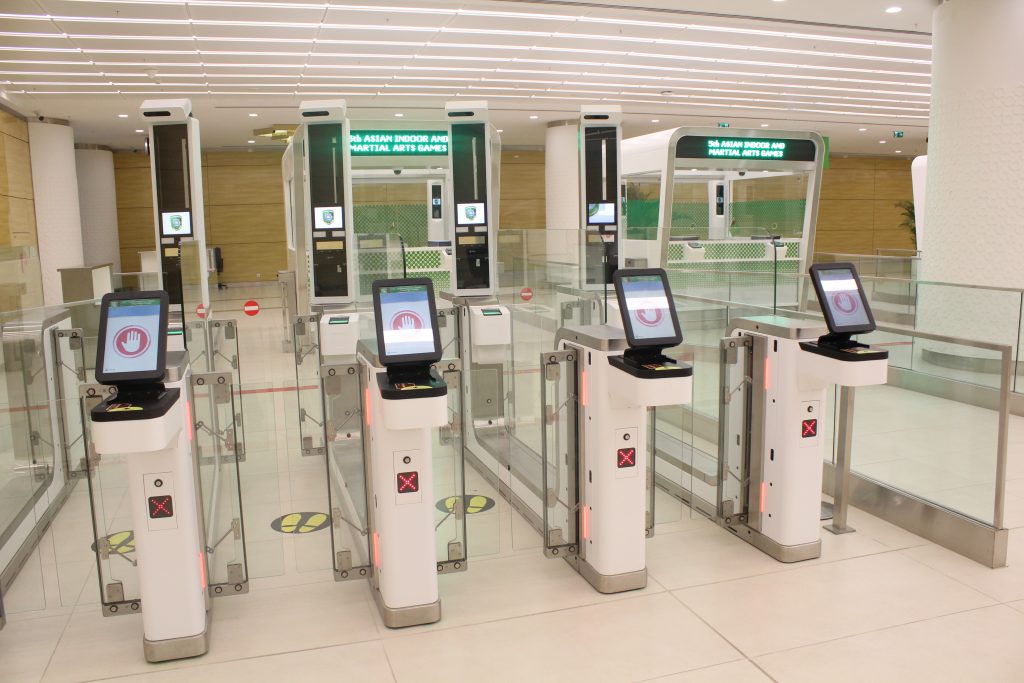

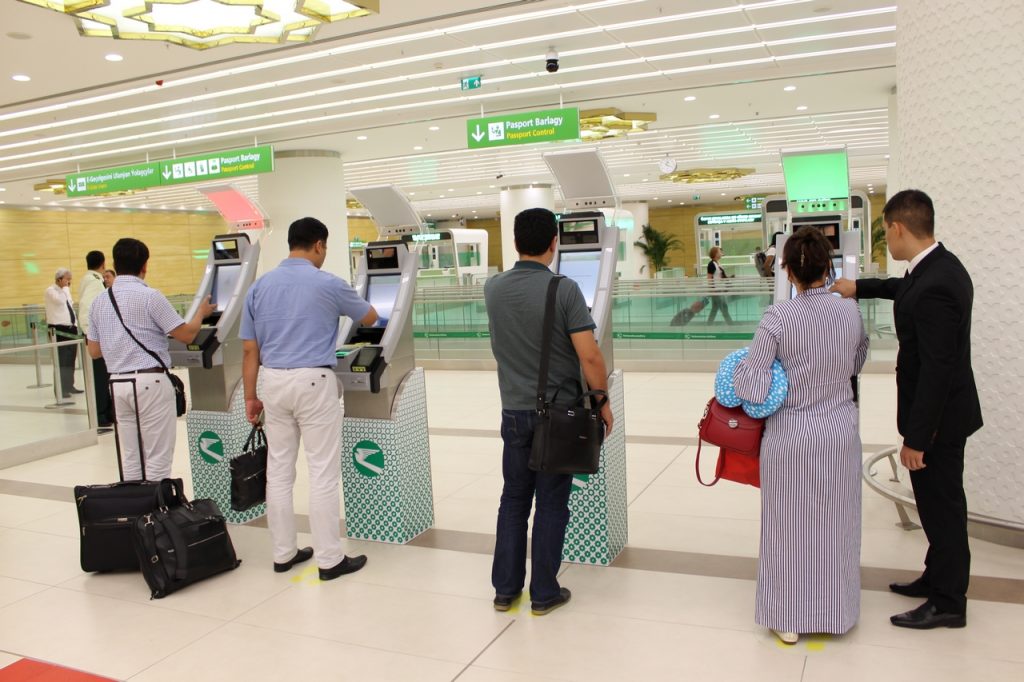

Turkmenistan Airport
OEM Applications
- Kiosks
- Smart Kiosks
- ATM
- VTM
- Tablets
- Smartphone
| Model Number | Description | Color |
| OU500 | USB | Black |
Technical Specifications
Imaging System
| Capture Modalities | Iris + Face (Simultaneous Capture) |
| Iris Sensor | CMOS (Monochrome) ISO 29794-6 Standard Compliant (IAP30) |
| Face Sensor | CMOS (Color) ISO 19794-5 Standard Compliant Full Frontal Image |
| Focusing Technology | ToF Assisted Iris & Face Auto Focus |
| Capture Range | DC24V 3A |
| Capture Speed | < 1 second within Operating Range |
| Illumination | 810nm NIR LED |
Connectivity & Power
| Interface | USB 3.0 / USB 2.0 High-Speed Compatible |
| Power Supply | USB Cable, 5V DC |
| Power Consumption | Max 4.5W (5V, 900mA) |
| Integration | Device Control SDK for Windows and Android |
| Power Mode | Standby, Capture, Sleep, Power-off, Wake-up |
Mechanical
| Dimensions (W x H x D) | 142mm x 26.8mm x 16.6mm (5.59” x 1.06” x 0.65”) |
Environmental
| Operating Temperature | 0°C – 45°C (32°F – 113°F) |
| Storage Temperature | -20°C – 95°C (-4°F – 203°F) |
| Humidity | 5% – 95% RH, Non-condensing |

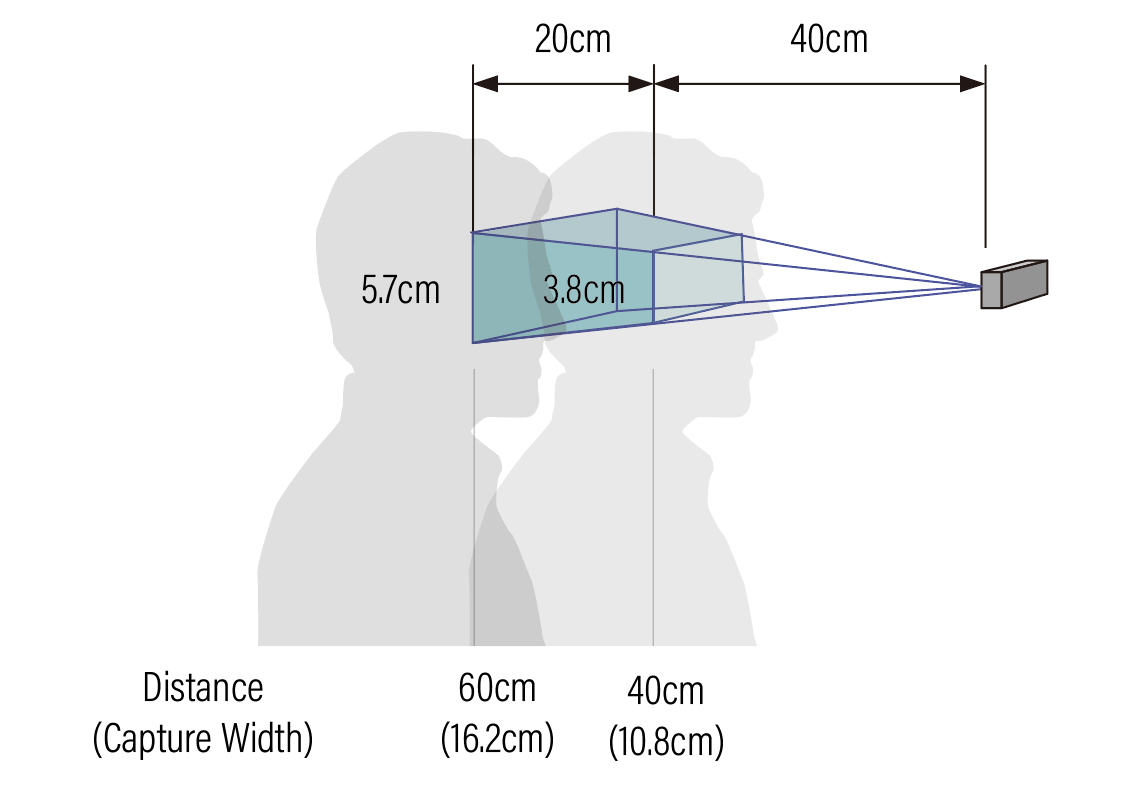

Capture Volume

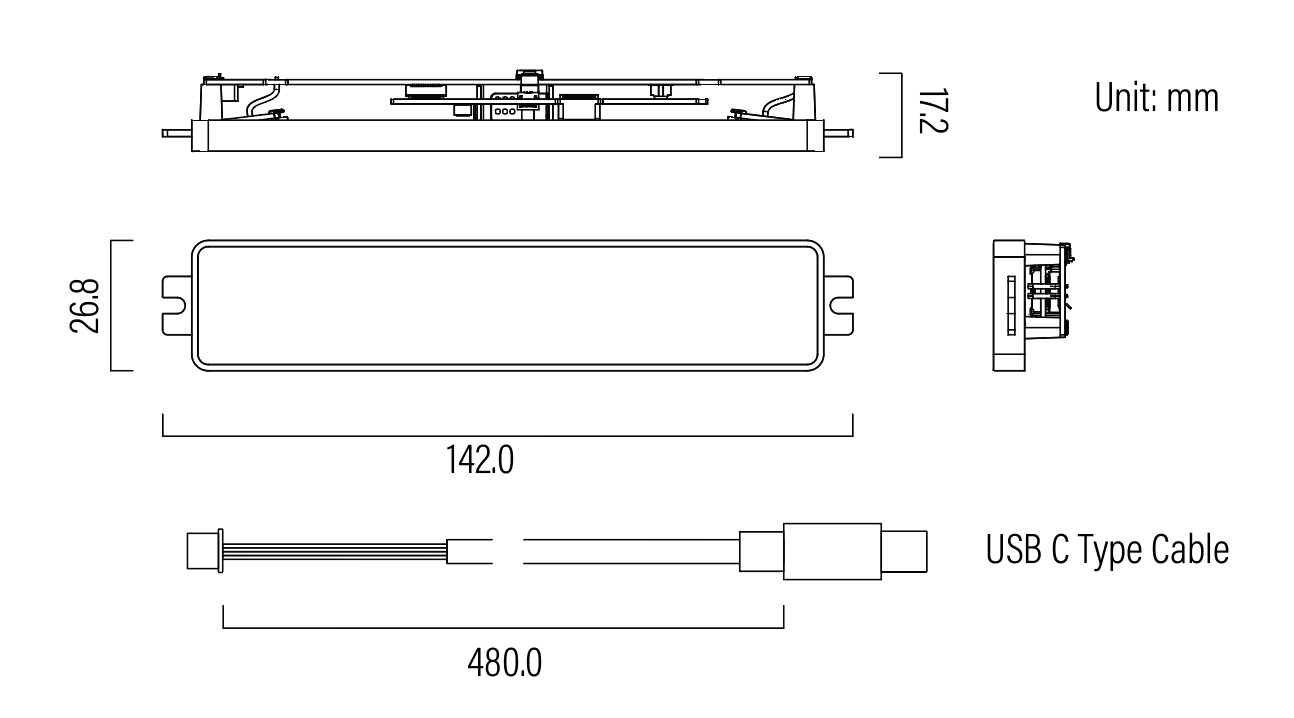

Mechanical Drawing
