IrisTime™ iT100
Intuitive and Simplified Time & Attendance
Built for the Modern Workforce.
Flexible. Fast. Convenient. Secure.
The iT100 is a non-contact biometric device that fuses both iris and facial recognition technologies. It operates in iris only, face only, and/or iris-face only fusion modes. It is designed to offer a large capture volume for greater flexibility, speed, and convenience. Additionally, enhanced security is ensured through Secure Boot, while the open Android platform provides opportunities for third-party application development.
Time Clock for the Modern Workforce
Face & Iris Recognition Workforce Management System
Product Features
Iris – Face Fusion
Operates in Iris only, Face only, Iris and/or Face, Iris-Face fusion mode. Select and use according to the biometric security environment.
Simultaneous Biometric Capture
Automatically captures dual irises and face simultaneously at the same distance.
Countermeasures
A proven set of anti-spoof measures that continues to set the standard for the industry is included.

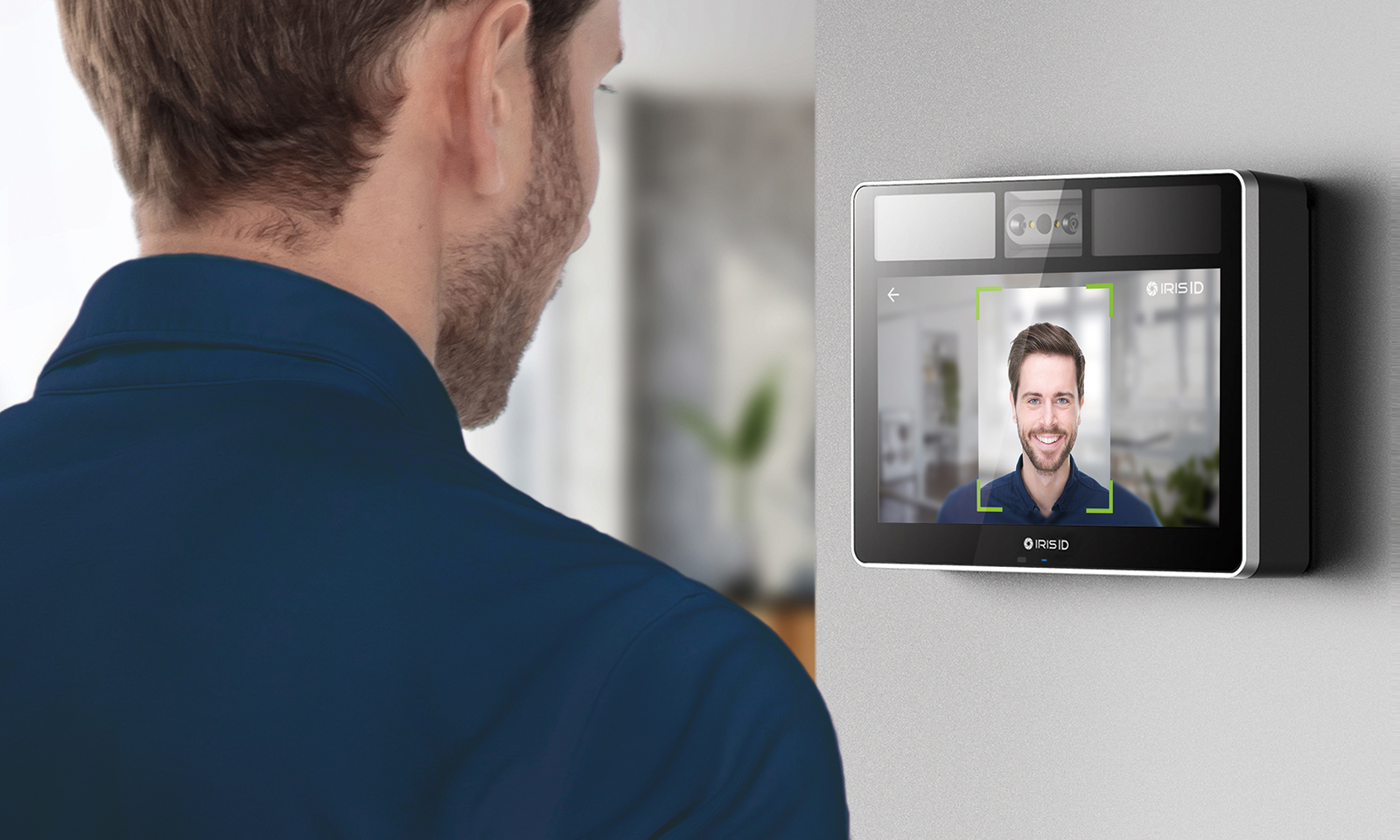

Non-Contact & Easy Authentication
Automatically captures faces and irises up to 24 inches (60cm).

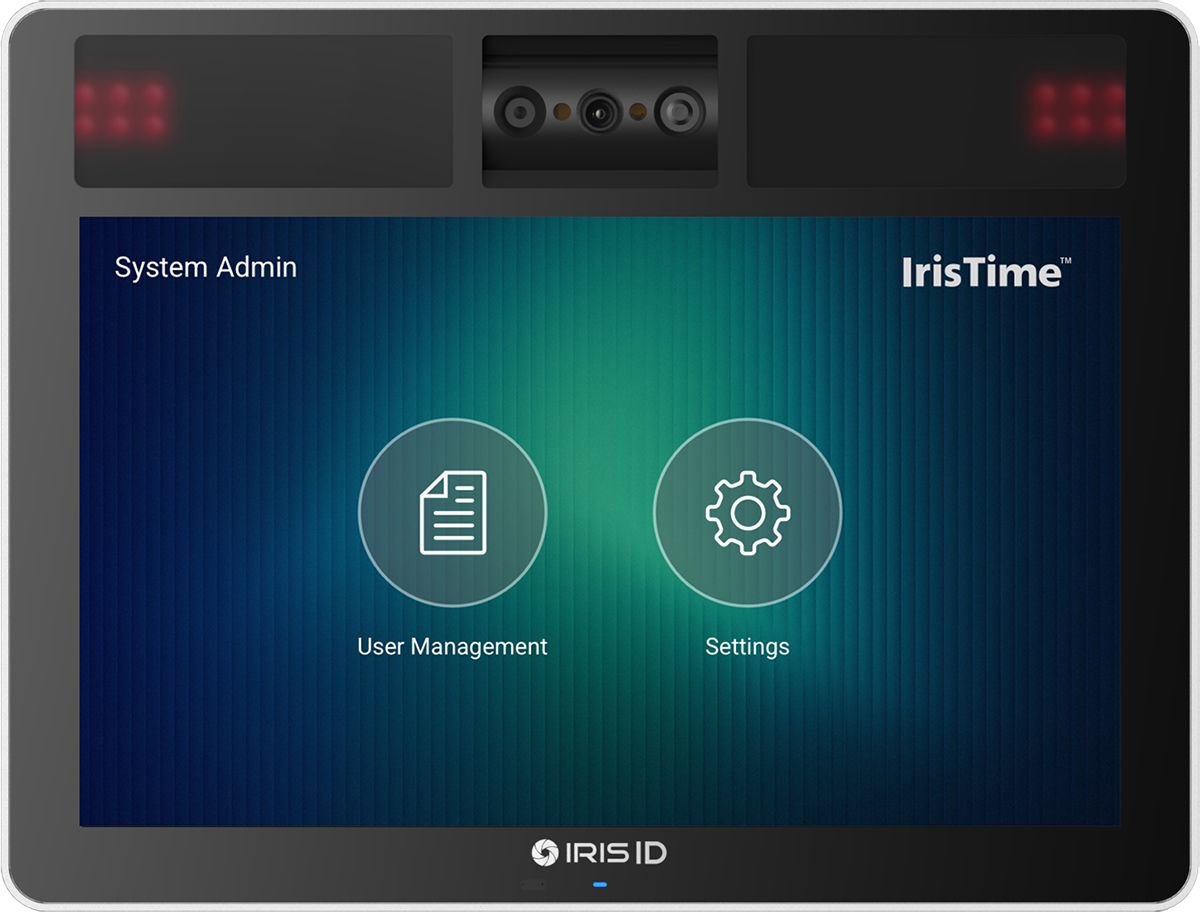

7 inch Multi-touch Display
Easy on device setting & user enrollment available with self-guidance with live images on 7” multi-touch LCD.
Standards Compliant
Tested and meets UL, ANSI, and international eye safety standards.
Automatic Tilt Adjustment
The camera automatically finds user and moves to a location where the user’s eyes and face can be photographed.
Advanced Security
Supports comprehensive data encryption, advanced network security, and secure boot.
Enhanced Capture Range
Quickly and easily authenticates just by looking at the screen with wide recognition range of Iris 30 – 60cm (12 – 24″) & Face 30 – 80cm (12 – 32″).
Open Android Platform
Open Android Platform provides for third party application development.
Technical Specifications
| Dimensions (W x H x D) | 180mm x 140mm x 30mm (7.1” x 5.4” x 1.2”) |
| Weight | 543g (1.2lbs) |
| Type | Walk-up |
| Power Input | 12 – 24 VDC (auto – +/- 500 mv ripple voltage industry standard) / Max 30watt |
| OS | Android OS |
| User Interface | Self-guidance with displayed images on LCD |
| Operation | All combinations of Iris, Face, Iris & Face Fusion, Card |
| User Capacity | Up to 5,000 1:N, 100,000 1:1 users |
| Transactions | Number of transaction logs on device DB: 1M (Iris) / 100,000 (Face) |
| Encryption | AES-256 |
| USB | 1 Port Type A |
| Matching Speed | Less than 1 second |
| Tilt | Auto Range, -25° – +25° |
| Languages | Support multiple languages and characters simultaneously |
| Algorithm | IrisCapture / DualEyeInfo™ / Countermeasure / Face Matching |
| Real Time Clock | Internal battery |
| Proximity Detection | ToF Sensor |
| Certifications | CE, FCC, KC, Eye Safety, UL294 |
| Operating Range | Iris Camera: 30 – 60cm (12 – 24“) / Face Camera: 30 – 80cm max (12 – 32”) |
| Temperature | Operating: 0°C – 45°C (32°F – 113°F) / Storage: -20°C – 90°C (-4°F – 194°F) |
| Connectivity | Ethernet or Wi-Fi (optional) |
| Interfaces | Weigand, GPI, Serial, Relay, Attachment Module (AT-1), Thermal Camera (THM-1) |

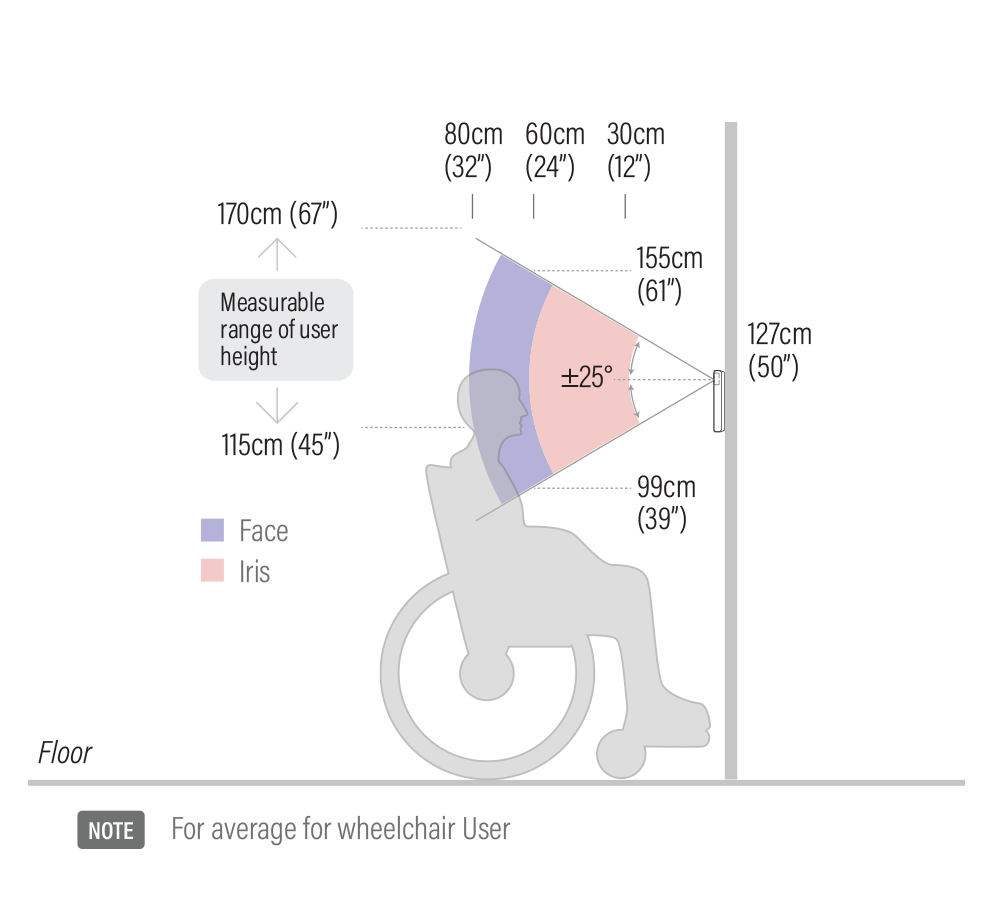

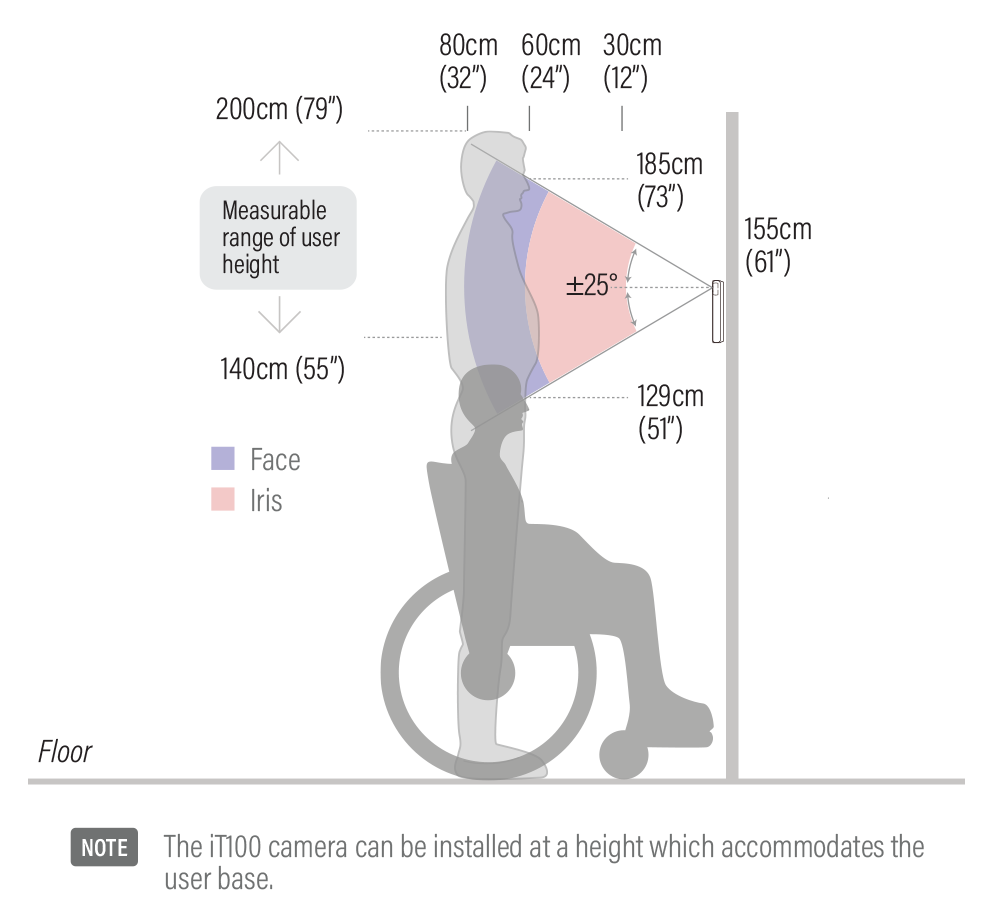

Capture Volume
iT100
Iris ID currently provides iris-based authentication systems for leading time and attendance solution suppliers such as Paychex, SimplyWork and other global enterprise customers.
IrisTime™ is a fully customizable time and attendance platform designed to meet the needs of organizations small and large. It is a product of Iris ID, the global leader in iris recognition technology for 25 years. IrisTime enables the creation of applications for the time and attendance market. It is designed to enable development of best-of-breed applications that will reside on the device.
The IrisTime platform uses dual biometric iris and face recognition capabilities to authenticate identities quickly, accurately and conveniently. Resident Android-based applications then process payroll and may calculate many other benefits such as health, disability, attestation questions and vacation.
Iris ID provides a comprehensive set of development tools for the IrisTime iT100 TimeClock. The platform supports the RESTful application program interface (API) enabling the device to work as an on-demand data aggregator. Well-documented examples to aid the development community are available.
Device management tools will be part of the application console. IrisTime includes the iTMS (IrisTime Management Services) application to manage the device on networks. iTMS functionality will also be available in API form to enable software developers to integrate device management in custom applications.
Yes, IrisTime is designed to support cloud-based applications.
The IrisTime™ iT100 is Iris ID’s non-contact time & attendance biometric offering that features both iris and facial recognition technology. Automatic recognition of iris and/or face is possible. A large capture volume allows for increased flexibility, speed, and convenience. Enhanced security through Secure Boot and an open Android Platform provides an opportunity for third party application development.
The IrisTime™ iT100 uses infrared light in conjunction with a digital video camera to simultaneously capture a picture of the employee’s face and irises. The infrared light illuminates the employee, and the video camera captures the images. These images are analyzed by algorithms to create mathematical representations of each known as templates. When an individual is enrolled in the iT100, templates are created and stored in memory.
The templates become the reference templates for future identification attempts. Reverse engineering this template into the face or iris image of the person who used it is impossible due to the high data compression and proprietary mathematical formula of the algorithm.
As you know, iris is the most accurate biometric; however, by combining face with iris we are delivering convenience with the highest accuracy. Just imagine you work in an environment where some percent of the workforce needs to use a mask or hardhat. Face biometrics will be hard challenged to identify these individuals. However, by providing both iris and face biometrics and the flexibility to pick the modality for individual identification, this makes it possible to identify 100% of the individuals 100% of time in any condition.
Today customers are demanding fast, non-contact, secure and accurate biometric and technologies that offer HR information to the employees in real time rather than making a trip to HR offices.
Our goal was to build a product that is flexible, configurable, and scalable. We have designed the Iris ID iT100 to support legacy solutions and allow customers to think about future Apps. It can be considered as a true end-point device that can interface with the users to provide all the information employees need to manage their work lives. Depending on the Apps and level of information integration, employees can recall the numbers of hours worked, how much vacation time is left and the status of 401K plans.
IrisTime accommodates Android-based applications developed for time and attendance. The platform accommodates hundreds of current time and attendance apps available from Google Play and directly from many leading developers’ internet sites .Flexibility and configurability are the key components of our solution. We want to provide identity authentication experiences which are tailored to every individual and organization; it is not just one size fits all. Anyone can pick whatever modality they need be it iris only, iris or face, face only and our new method of iris-face fusion. If the organization needs to change how they identify the individual during or following the crisis it is available just by a click of button or through an API call.
Absolutely, we see the demand for a fast, non-contact and accurate solution. Our approach is to offer an open platform where Android App developers and organizations can use the iT100 to fit their work needs and create a custom-developed solution that will impact the adoption of biometrics in all markets.
