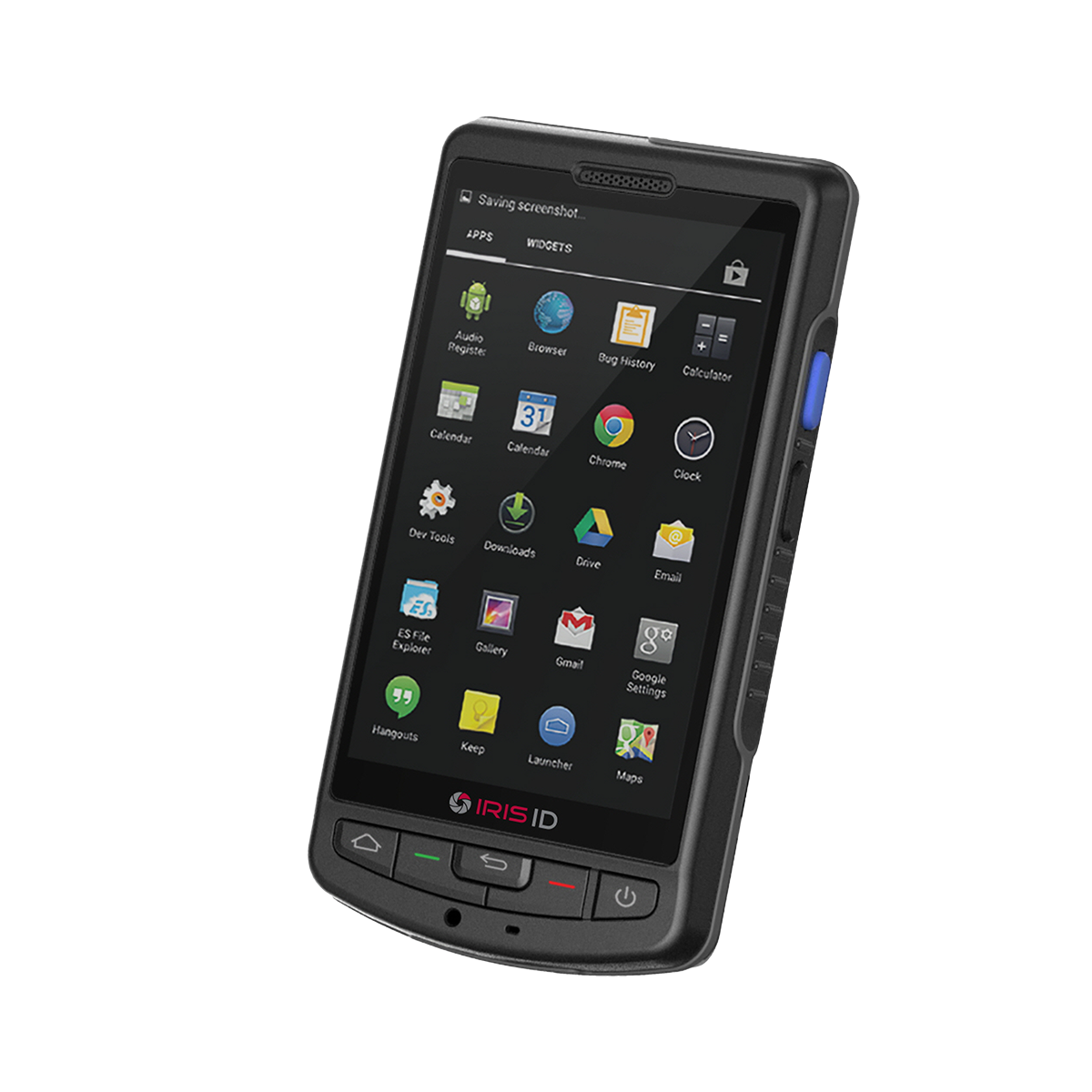

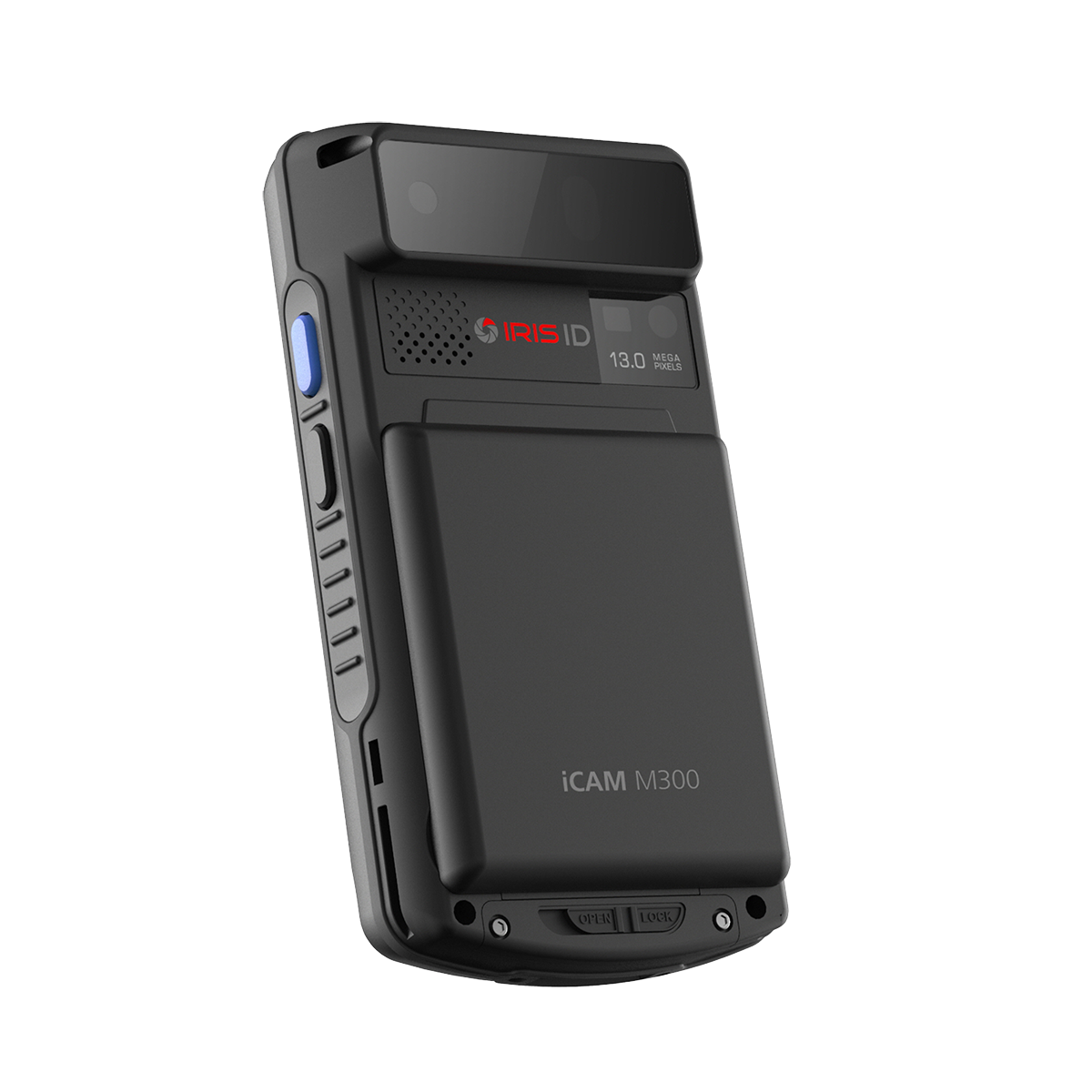

iCAM M300
Portable multi biometric identification
Handheld Platform. Large Scale Results.
Compact Form. Uncompromised Performance.

Iris ID has been delivering commercial iris recognition systems since 1997, and today IrisAccess® authenticates more individuals globally than all other iris platforms combined. This deep legacy in high-accuracy biometrics is fully realized in the iCAM M300, a powerful handheld device that places secure, multimodal identity authentication directly in the user’s hand.
Built on Iris ID’s advanced algorithms, engineered to capture high quality images in most challenging environments, the iCAM M300 supports iris, face, and fingerprint biometrics for fast and reliable identity verification and identification. Designed for mobility, the iCAM M300 is ideal for applications requiring quick checks or searches against smaller biometric galleries, delivering trusted authentication wherever it is needed.
High Speed – Dual Iris capture
The iCAM M300 performs rapid, simultaneous dual-iris capture and outputs ISO-compliant images that meet NIST IAP-30 (ISO 29794-6) requirements. Its intuitive user interface simplifies the process for both operators and end users, ensuring consistent, high-quality results with minimal training.
Combining high-resolution facial imaging, integrated fingerprint capture, and industry-leading iris recognition, the iCAM M300 enables robust multimodal authentication in a wide range of environments. This multimodal approach enhances accuracy and improves match confidence when verifying individuals or searching against a compact biometric gallery.
With an onboard orientation sensor and dynamic left/right capture controls, the M300 adapts naturally to how the device is held, making biometric capture smooth, quick, and user-friendly.
The result is a compact, rugged, and highly capable handheld platform that delivers complete mobile identity authentication—anywhere, anytime, in the palm of your hand, optimized for verification and smaller-scale identification scenarios.




Features
- Multimodal – Iris, Face & Fingerprint
- High Speed Dual Iris Capture (Standards Compliant)
- 500 dpi Single Finger Sensor (with M3-AM)
- MRZ & Magnetic Swipe Card Reader (with M3-AM)
- FAP-45 Dual finger sensor (with M3-IB45)
- IP64 Compliant – Dust & Water Resistant
- Connectivity – 4G LTE / HSPA+ / GSM / GPR – Wireless WAN & LAN, GPS.
- Various Ready-to-use Accessories (Contact Smart Card Reader, Cradles, Direct Auto Charger Kit, Etc.)
iDATA iCAM M300 SDK
Iris ID provides an SDK to enable all functions of the iCAM M300. The development environment and functionality of the SDK for the iCAM M300 reader closely mimics those of the widely deployed iData SDK for the iCAM series cameras. Android application developers will find integration to be very straightforward.
SDK’s included with iCAM M300
- Iris Image Capture
- Iris Image Quality Metrics
- Iris Matching 1:1 and 1:N
- Contact Smart Card & NFC SDK
- Fingerprint Capture SDK
Preloaded Software
- Iris Camera Device Control
- Quality Assessment
- Template Generation & Matching
Additional Software
- MRZ Card Reader SDK
- Contact & Contactless Card Reader SDK
- Barcode Reading, Driver License 1
- Fingerprint SDK’s, IDEMIA and Integrated Biometrics 2
1 2 Some 3rd Party SDKs may have limited feature set. Contact your sales representative for details.
Sample Application Source Code
The sample application source code is delivered as part of the SDK. Sample SDK source code is provided.
Demonstration Application
A runtime only application is included for customer evaluation which provides the functionality to perform iris, fingerprint and face image capture and iris template matching.
Technical Specifications
Hardware Features
| CPU | 1.8GHz Octa-core processor |
| OS | Android 6.0 Marshmallow |
| Dimensions (H x W x D) | 139mm x 73mm x 21mm (5.4″ x 2.8″ x 0.8″) |
| Weight | 250g (8.8oz) with 1860mAh Battery 300g (10.6oz) with 4000mAh Battery |
| Display | 4.3 inches / WVGA (480×800) |
| Touch Panel | Capacitive touch |
| Operating Temperature | -20°C – 60°C (-4°F – 140°F) |
| Storage Temperature | -22°F – 158°F (-30°C – 70°C) |
| Humidity | Non-condensing, 93% |
| Face Camera | 13 Mega Pixel Camera with Autofocus and LED Flash |
| Wireless WAN (World wide) | 4G: Band1 (2100), Band3 (1800), Band7 (2600), Band20 (800) 3G: Band1 (2100) 2G: GSM 900, 1800 |
| Wireless WAN (US) | 4G: Band2 (1900), Band4 (1700), Band5 (850), Band17 (700) 3G: Band2 (1900), Band4 (1700), Band5 (850) 2G: GSM 850, 1900 |
| Wireless LAN | IEEE 802.11 a/b/g/n/ac |
| GPS | Embedded A-GPS |
Iris Camera
| Camera | 5MP B&W CMOS sensor |
| Operating Range | 350±30mm (12.2” – 15.3”) |
| Resolution | Above 160 pixel/cm |
| Iris Capture Volume | 130mm x 46mm x 80mm |
| Illumination | IR LED |
| Image | 2592 x 920 x 30 Frame |
| Dimension (W x H x D) | 56mm x 21mm x 10mm |
M3-AM: Fingerprint Module – OCR MRZ and Magstripe
| Finger Sensor Type | Optical Sensor |
| Sensing Area (W x H x D) | 14mm x 22mm x 0.7mm |
| Pixel Resolution | 500dpi, 256 Gray scale values |
M3-AM: OCR (MRZ Reader)
| Standard OCR Fonts | OCR-B and E13B |
| Machine Readable Passports (MRP) | 2 lines of 44 characters |
| Machine Readable Visas (MRV) | 2 lines of 44 characters, 2 lines of 36 characters |
| Travel Documents Field of View Object | 2 lines of 36 characters, 3 lines of 30 characters 19.6 mm nominal 1.5 mm maximum from imager window |

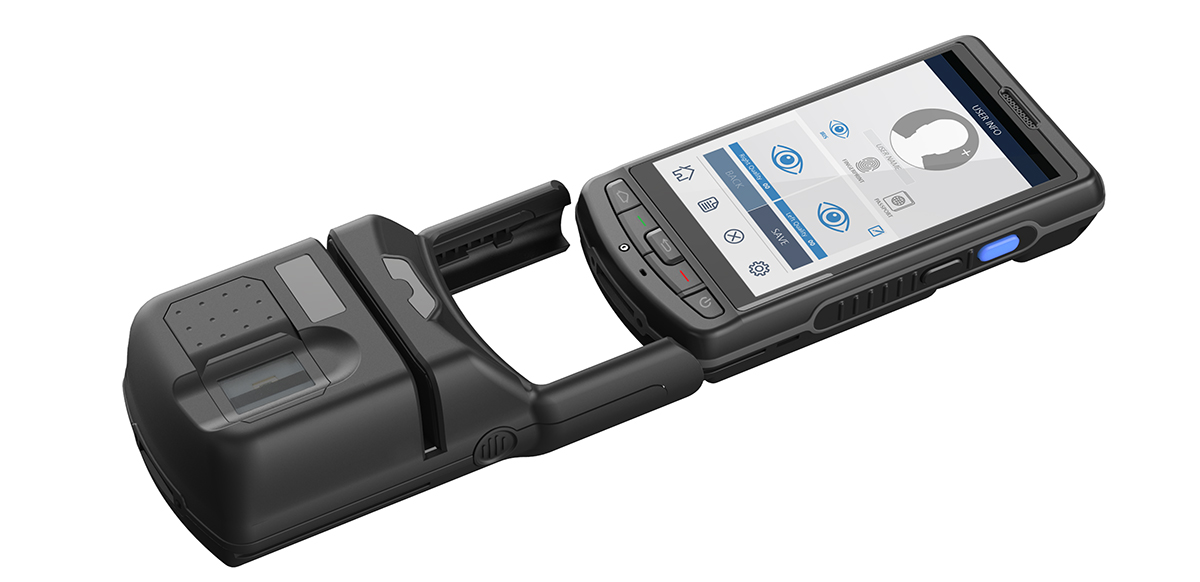

M3-IB45: Fingerprint Module – FAP 45 Two-Finger Roll Sensor
| Finger Sensor Type | LES (Light-Emitting Sensor |
| Sensing Area | 40mm x 38mm (1.6″ x 1.5″) |
| Pixel Resolution | 500ppi, 256 gray scale values |
Available Options
| Contact \ Contactless Card Reader | Battery pack M3-BTY-IDC includes contact card reader. Included battery supports contactless ISO compliant cards. |
