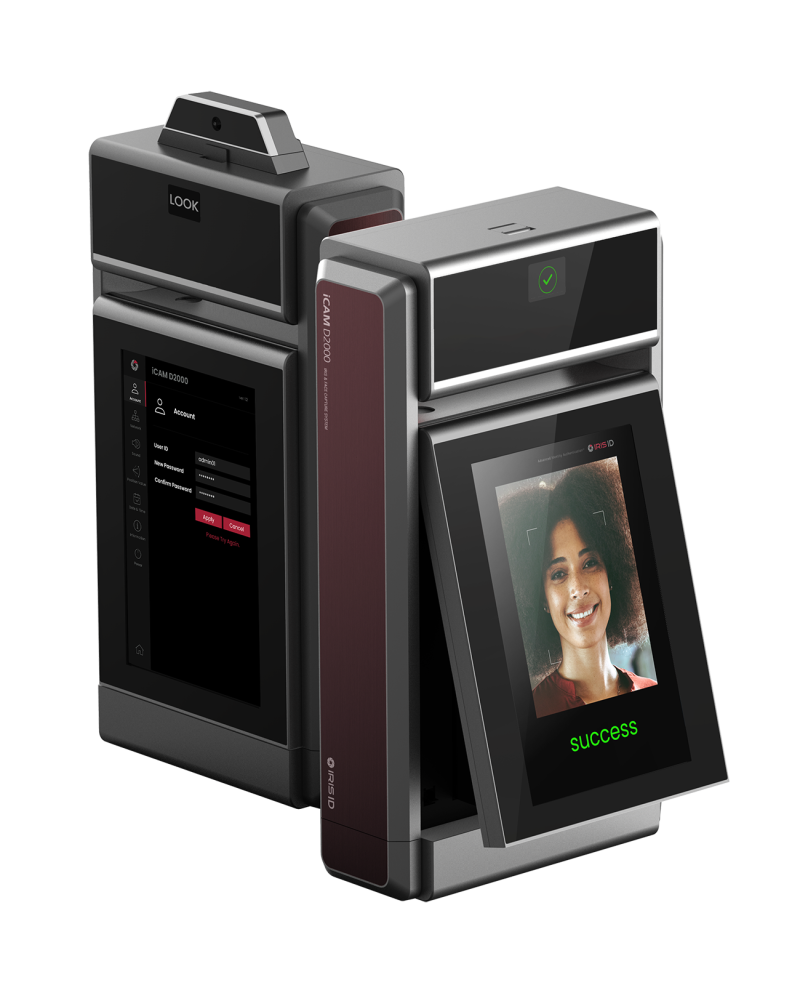

iCAM D2000
Simple convenient travel experience
From curb to gate – Secure and Accurate
Iris ID’s iCAM D2000 multi-biometric system is compact, insightful, and delivers unparalleled quality biometric performance. The innovative design represents a new class of multimodal iris and face identification systems. With a flexible capture distance ranging from 50cm to 1.0m, iCAM D2000 provides an intuitive user experience while delivering high quality iris and face images for enrollment and identification. Built with the user experience in mind the iCAM D2000 is ideal for identity, travel, and access solutions.
Leveraging multi-modal biometrics is a unique feature set that sets us apart and reinforces to the industry that we are not only security focused, but also customer driven. Each solution that we put forth is thoughtful and aims to deliver modern design complemented with speed and accuracy.
Iris ID provides a robust REST API to enable all functions of the iCAM D2000. The REST API is a platform independent solution meaningit adheres to clear architectural principles, uses standard web protocols, and supports scalable, modular development.
Single Capture Biometric System
Ideal for enrollment or authentication
Product Features
Multimodal Biometric
Automatically captures dual iris and face at the same distance.
User Height Accommodation
Automatic capture range from 1.2m to 2.1m
Countermeasure for Security
A proven set of anti-spoof measures that continues to set the standard for the industry.
Installation Flexibility
The device can be used with a mounting option that can be fixed to a desk.
Enhanced Capture Range
Range 50 –100cm. Auto Zoom, Pan and Focus. High quality optics.
Intuitive User Guidance
10.1 inch high LCD display provides user feedback.
Mask Detection
The device can detect a user’s mask.
Standards Compliant
Standards Compliant Hardware and Software: CE, FCC, Eye Safety, ISO and ICAO, RoHS
Technical Specifications
Basic
| CPU | Cortex-A53 |
| Storage | 2GB DDR3 (1866 Mbps, 1.35 V), 8GB eMMC |
| OS | Embedded Linux |
| FPGA | Spartan6 + 64MB Flash Memory |
| Power | DC24V 3A |
Display
| Size | 10.1 Inch (Diagonal) LCD with capacitive touch screen |
| Resolution | 1280 x 800 |
| Interface | MIPI DSI |
Audio
| Codec | Various sample rate (8 – 48 KHz) |
| Speaker Out | YES |
Camera
| Face Camera | ISO 29794-5 Compliant |
| Iris Camera | ISO 29794-6 Compliant |
| Stereo Camera | 2.3MP, BW, Global Shutter x 2 |
| Capture Time | Less than 1 seconds for dual iris and face capture |
Illumination
| IR LED | ISO 29794-6 Compliant |
External Interface
| Ethernet | Ethernet 10/100 Mbps |
| USB | USB2.0 Host/OTG |
| Memory | Micro SD Socket |
Mechanics
| Pan / Tilt Motor | Precision High Speed Step Motor |
| Iris Camera Lens | Zoom & Auto Focus |
Capture Volume
| Height (Tilt) | ± 45cm (120cm – 210cm at 75cm when table height is 117cm) |
| Width (Pan) | ± 50cm at 100cm, ± 25cm at 50cm |
| Distance | 50cm – 100cm |
Size
| Dimension (H x W x D) | 41.8cm x 23.7cm x 10.45cm (16.5” x 9.3” x 4.1”) |
| Weight | 8.8kg (19.4lbs) |
Operating Environment
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Storage Temperature | -4°F – 203°F (-20°C – 95°C) |
| Humidity | 5 – 95% non-condensing |
Capture Volume
