iBAR 600E
Help travelers skip the hassle when they need to identify and authenticate

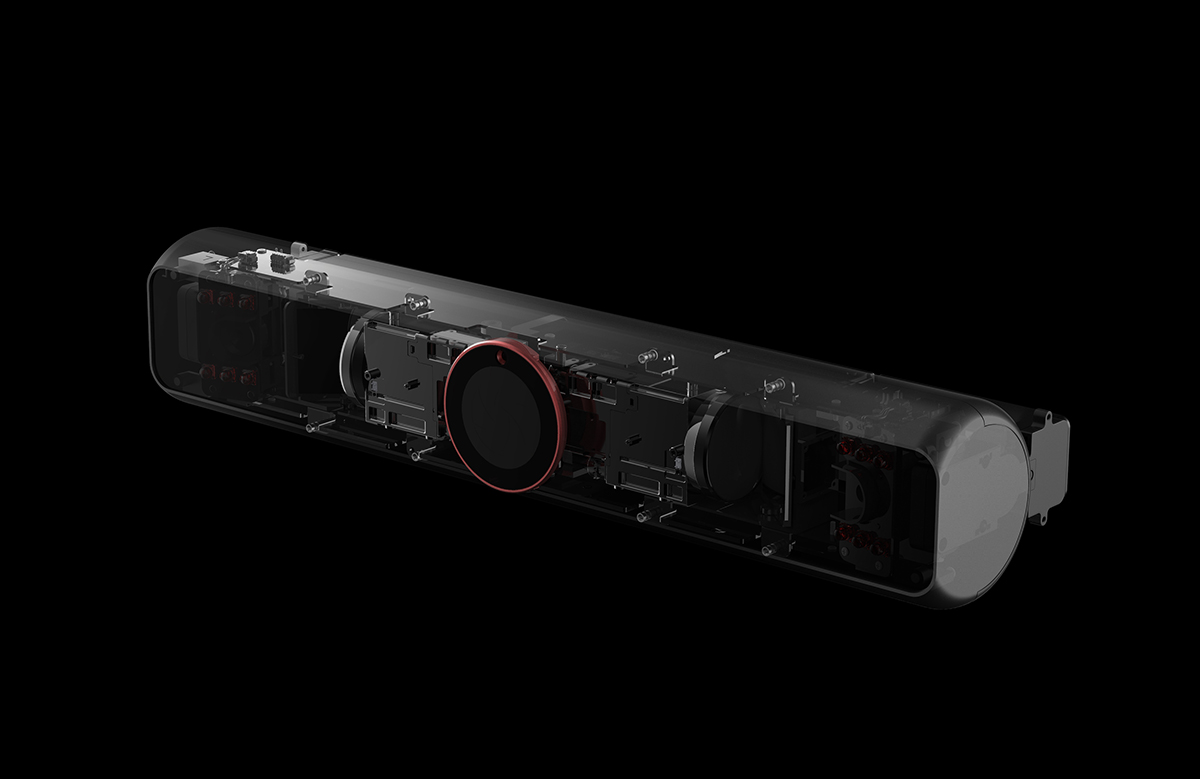

Advanced Multi-Biometric Module


The all new iBar 600 from Iris ID is the latest product release designed to help travelers skip the hassle when they need to identify and authenticate. It was created in response to industry insiders communicating a need for a product that would deliver an efficient and effective user experience. Ready for enrollment programs and security check in’s including at the airport or for immigration, the iBar 600 is a complete and seamless OEM module that streamlines the verification process.

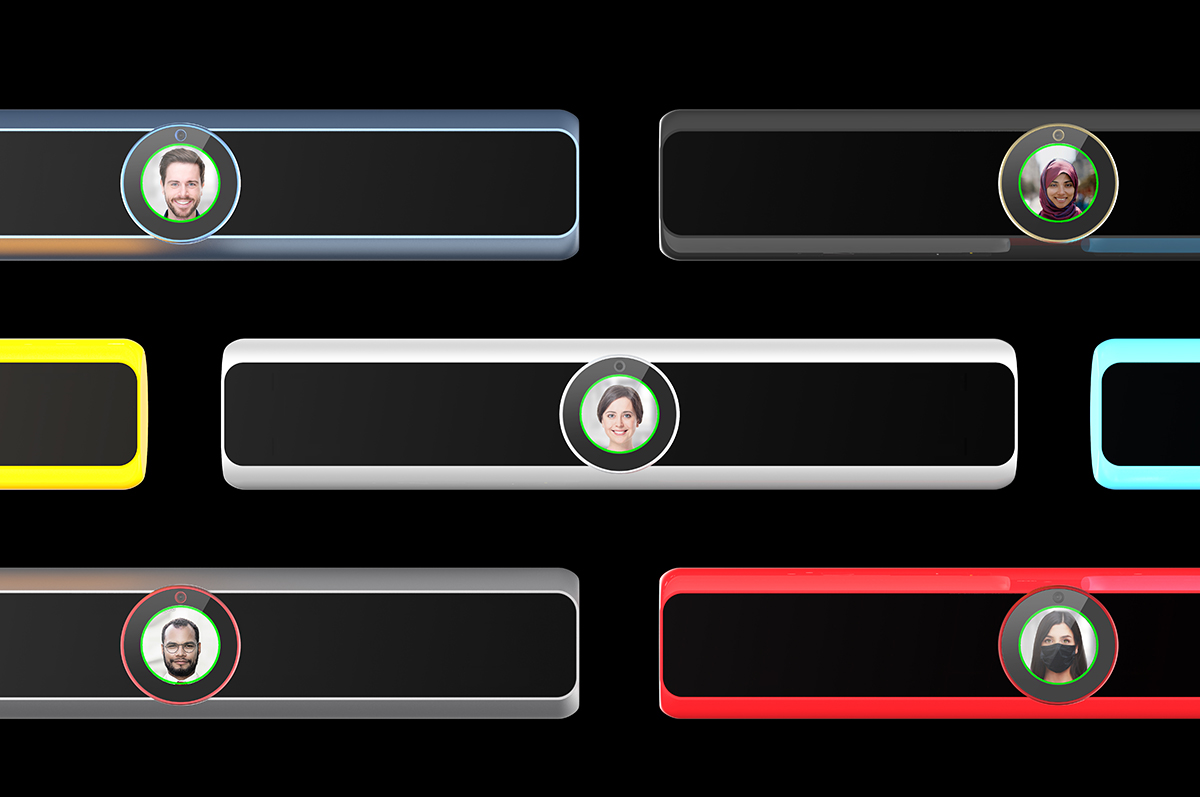

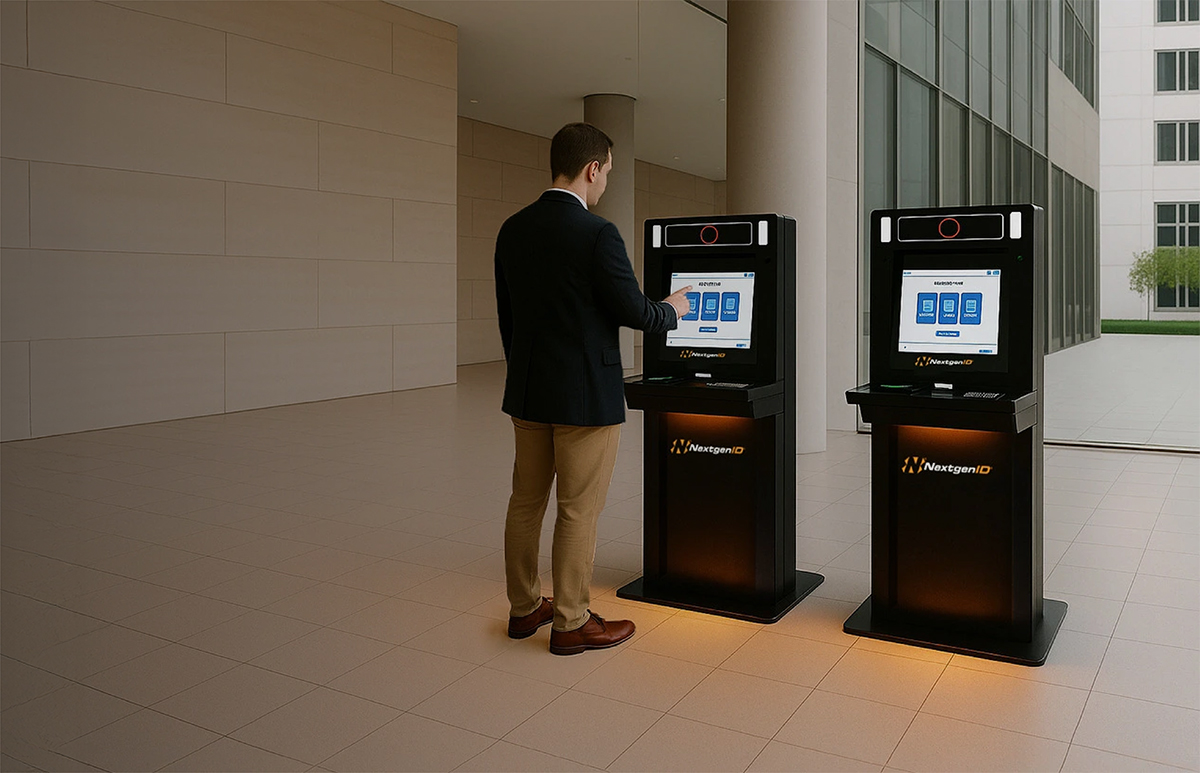

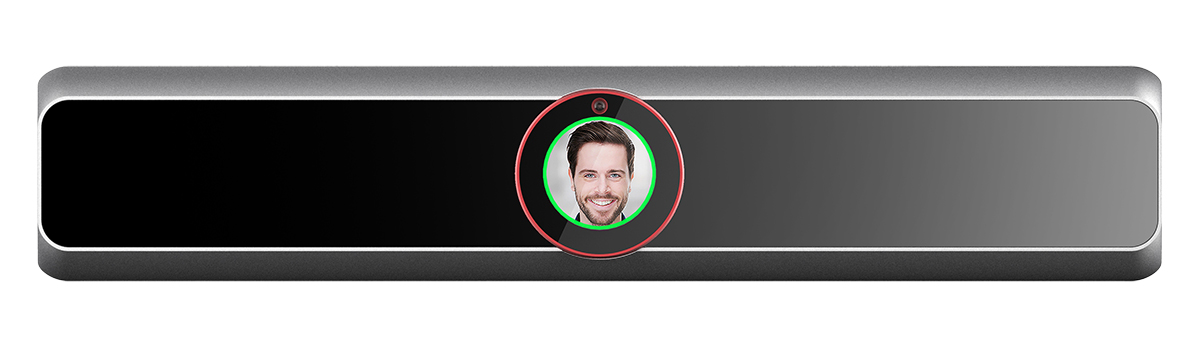

With an impressive capture volume, the multimodal iris & face collection iBar 600 is adept at providing crisp and accurate images at various angles – even capturing someone in a wheelchair. Upon kiosk approach, users will meet an intuitive and user-friendly 1.3” circular LCD interactive screen. This screen placement instinctively attracts a user’s eyes to begin the identification process. With activation, cameras on the LCD zoom in and out and subtitles are featured on the bottom of kiosk screens as an additional instructional guide.

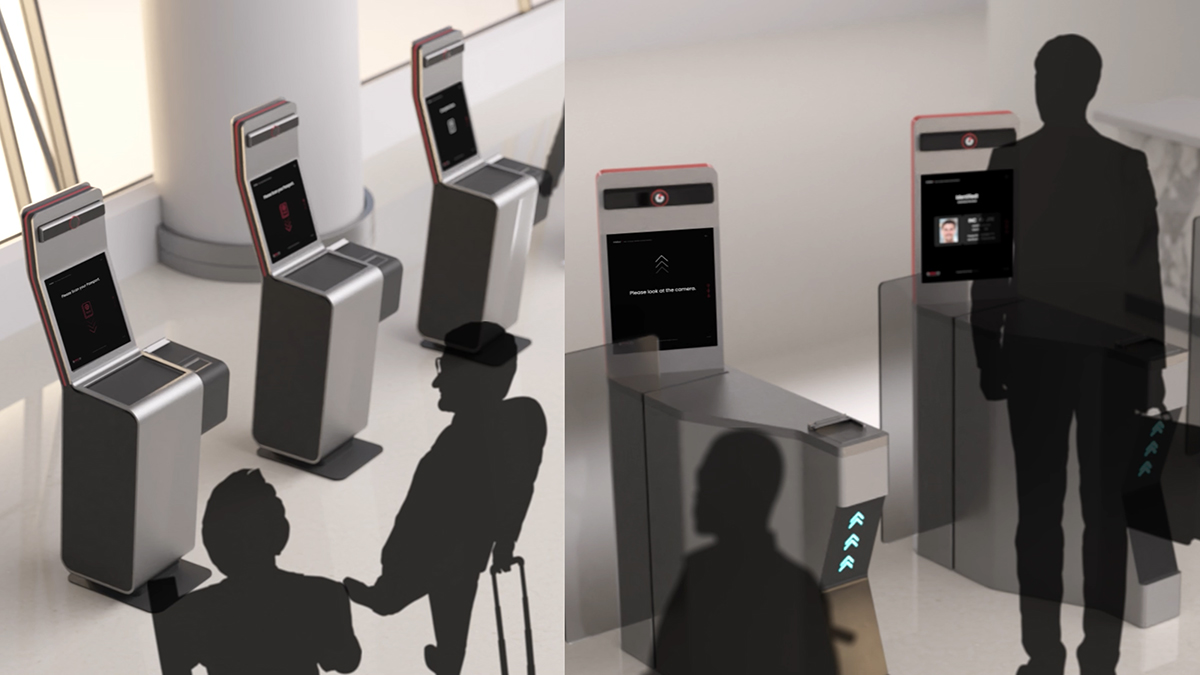

The iBar 600 is a smart, image capture standards compliant biometric system designed to work with legacy kiosk or gate implementation within aviation or transportation sectors.
Designed to work with legacy kiosk or gate implementation within aviation or transportation sectors
Intuitive LCD user interface, large capture volume, counter measures and advanced security.



Product Features

High Quality Video Streaming

Accurate Capture up to One Meter

REST API Easy Integration

OS Platform Independent

Auto Zoom, Focus and Image Cropping

OEM Package for Kiosk or Gate Installation

Flexible Mounting Options

Works with Masks and Glasses

Tested in authorized testing lab
Technical Specifications
Basic
| CPU | Cortex-A53 |
| Storage | 2GB DDR3, 16GB eMMC |
| OS | Embedded Linux |
Display
| Size | 1.3 inch, Circle Type TFT LCD |
| Resolution | 320(H) x 320(V) |
| Interface | MIPI DSI |
Connectivity
| Ethernet | TCP/IP, RJ45 |
Camera
| Iris Camera | ISO 29794-6 Compliant |
| Face Camera | ISO 29794-5 Compliant |
Illumination
| IR LED | ISO 29794-6 Compliant |
Security
| Secure Chip | AES256 |
Mechanics
| Pan / Tilt Motor | Precision High Speed Step Motor |
| Iris Camera Lens | Zoom & Auto Focus |
Power
| Power Supply | DC24V 2.5A |
Capture Range
| Height (Tilt) | ± 52cm at 75cm (±35°) |
| Width (Pan) | ± 20cm at 75cm (±5°) |
| Distance | 40cm – 100cm (15” – 39”) |
Size
| Dimensions (H x W x D) | 345mm x 66mm x 85mm (13.6” x 2.6” x 3.3”) |
| Weight | 1.1kg (2.4lbs) |
Streaming
| Face Image | H.264 Format, 30FPS @ 1280×720 (HD) or 640×480 (Video Only) |
Operating Environment
| Operating Temperature | 32°F – 113°F (0°C – 45°C) |
| Storage Temperature | -4°F – 203°F (-20°C – 95°C) |
| Humidity | 5 – 95% non-condensing |

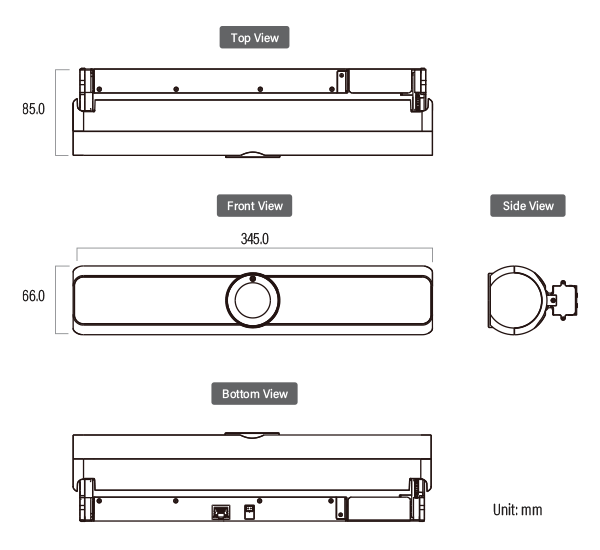

Mechanical Drawing

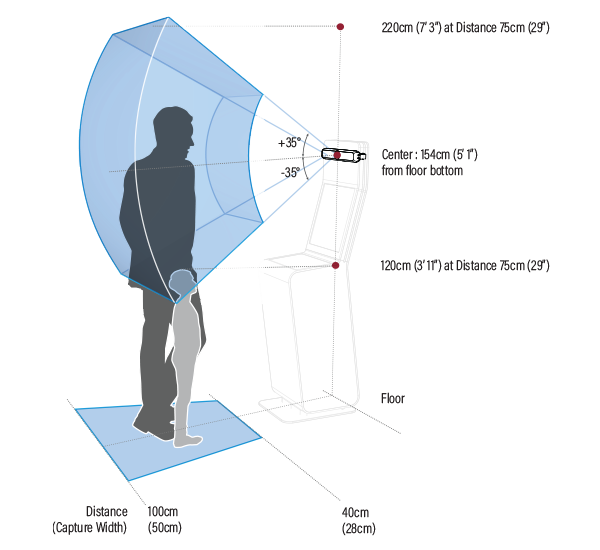

Capture Volume
